Name: CoatTech Industrial Diesel Heated Automotive Prep Station with Hot Air Circulation for Waterborne Paint Drying Introduction
Brand: CoatTech Intelligent Equipment(Guangzhou) CO.,LTD
SKU: CT-Prep A16
Price: 3,500.00 USD
Availability: InStock

CoatTech Industrial Diesel Heated Automotive Prep Station with Hot Air Circulation for Waterborne Paint Drying Introduction

اطلاعات پایه

محل منبع:	چین
نام تجاری:	CoatTech
گواهی:	CE
شماره مدل:	CT-Prep A16

مقدار حداقل تعداد سفارش:	1
قیمت:	USD1000-USD6000/SET
جزئیات بسته بندی:	با فیلم و کارتن معمولی
زمان تحویل:	15 روز پس از سپرده
شرایط پرداخت:	T/T
قابلیت ارائه:	30 مجموعه در ماه

اکنون تماس بگیرید

نام:	CT-Prep A16	با استفاده از انرژی::	دیزل ، گاز ، بخار ، برقی یا گزینه دیگر
درب اصلی::	سبک تاشو یا سبک نورد برقی	موتور::	برند چینی یا برند واردات
کنترل sytem::	سبک سوئیچ یا کنترل صفحه نمایش لمسی PLC	دیوار::	Metal Sheld ، EPS ، Wool Rock Pu برای گزینه
رنگ::	سفید یا گزینه دیگر	کاربرد::	اتوبوس/کامیون یا سایر محصولات فلزی
منابع انرژی::	آب ، برق ، گاز	پوشش:	10-50um
DIMENTION::	همانطور که لازم است
برجسته کردن:	Industrial diesel heated prep station,Automotive waterborne paint drying station,Hot air circulation prep station , Automotive waterborne paint drying station , Hot air circulation prep station

CoatTech Industrial Diesel Heated Automotive Prep Station with Hot Air Circulation for Waterborne Paint Drying

Introduction:

Equipped with a YDW series double-inlet centrifugal fan featuring Siemens technology. This unit utilizes a diesel burner to provide hot air, making it suitable for both preparation and finish curing in colder climates.

Technical Specification Sheet

Model	Inner Size (mm)	Outer Size (mm)	Total Airflow	Heating	Total Power	Application
CT-Prep A6	6900×3900×2700	7000×5600×3400	24,000 m³/h	Diesel Burner	16 kW	Spray & Bake

System	Component	Description	Optional
Heating	Burner	Riello G20 Diesel Burner (180,000 kCal/h)	Natural Gas Burner
	Exchanger	SUS304 Stainless Steel Heat Exchanger	-
Air System	Function	Sanding (100% Fresh Air) / Baking (Recirculation)	-
	Damper	Pneumatic Changeover Damper	-
Cabin System	Plenum	Insulated 50mm EPS Roof Plenum	-
	Basement	300mm Raised Base	-
Control	Temp Control	Digital Thermostat (Max 60°C)	-

CoatTech Industrial Diesel Heated Automotive Prep Station with Hot Air Circulation for Waterborne Paint Drying Introduction 0

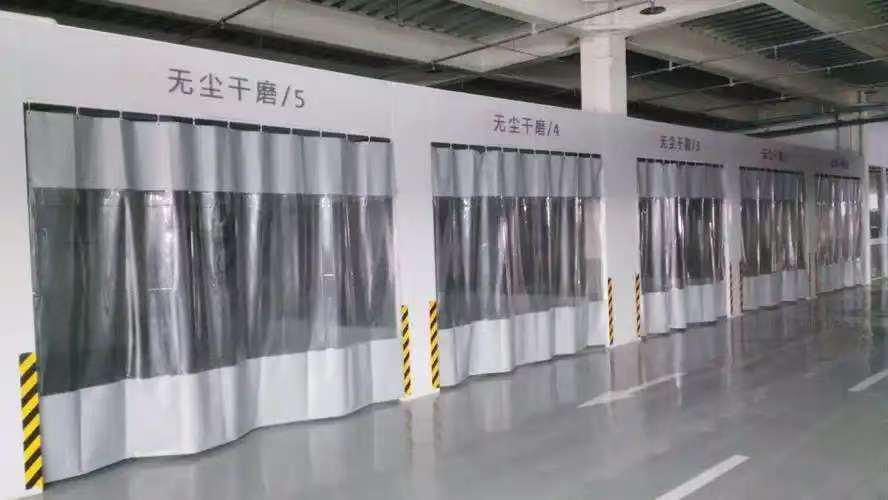

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

Convenience: Easily slide curtains open to move cars in and out quickly.
Visibility: Transparent windows allow the manager to monitor work progress.
Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.

FAQ

Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
